Ceramic Heater Bands

5 Styles to Choose From • Energy Saving • Up to 65 Watts/Sq. In.
STANDARD - 5/8" thick, ¼" thermal insulation, up to 1400 F, 45 watts/sq. in.
Plastic processing requires high operating temperatures and fast production rates. Omega has designed its ceramic band heaters to meet these demands. These heater are, in effect, high temperature electric furnaces capable of very efficient heat transfer by radiation, conduction and convection. Built-in insulation minimizes unwanted temperature changes along the barrel.

Other types of band heaters are primarily conductive, requiring an intimate fit with components being heated. Grooves or other surface irregularities form voids under the bands, resulting in hot spots and premature heater failure.

Ceramic bands are recommended here because efficient heat transfer is not affected by irregular surfaces or loose fit. At higher watt densities they can be used in wider increments than other heaters. This means you can reduce the number of bands used and simplify wiring.
"THE PREFERRED CHOICE OF OEM’S"

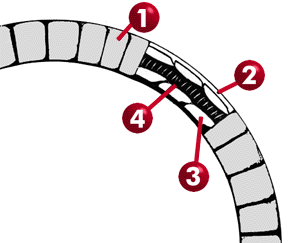

OMEGA QUALITY CONSTRUCTION

1. Stainless steel sheath
Resists rust and high temperatures, and provides firm mechanical support. Easily wraps around barrel due to fluted construction.
2. Thermal insulation
¼ inch of ceramic fiber prevents heat loss, thereby lowering energy costs.
3. Ceramic coil supports
Designed for their dielectric and thermoconductive characteristics, the interlocking feature provides flexibility so band wraps easily around barrel.
4. Nickel-chrome heating coil
Precision wound, helical construction gives extended service. A heavier weight than found in mica or other conventional heaters.
SERIES 100 (Flange lock-up)
TYPE LEAD OR TERMINALS OTHER DESCRIPTION
100 Studs No Terminal Box
101 Studs With Terminal Box 1-3/4" High
102 Studs With Low Profile Box 1" High
103 Armor Strain Relief Bracket Straight
104 Armor Strain Relief Bracket 90 Deg. Bend
105 Braid Strain Relief Bracket Straight
106 Braid Strain Relief Bracket 90 Deg. Bend
SERIES 200 (Barrel nut clamping)
200 Studs No Terminal Box
201 Studs With Terminal Box 1-3/4" High
202 Studs With Low Profile Box 1" High
203 Armor Strain Relief Bracket Straight
204 Armor Strain Relief Bracket 90 Deg. Bend
205 Braid Strain Relief Bracket Straight
206 Braid Strain Relief Bracket 90 Deg. Bend
SERIES 300 (Latch and trunnion)
300 Studs No Terminal Box
301 Studs With Terminal Box 1-3/4" High
302 Studs With Low Profile Box 1" High
303 Armor Strain Relief Bracket Straight
304 Armor Strain Relief Bracket 90 Deg. Bend
305 Braid Strain Relief Bracket Straight
306 Braid Strain Relief Bracket 90 Deg. Bend
Specifications

Temperature Up to 1400 Deg. F
Watt Density Up to 45W/Sq. In.
Voltage Up to 480 V (single or three phase)
Resistance-Tolerance NEMA Standard plus 5%, Minus 10%
Wattage Tolerance NEMA Standard plus 5%, Minus 10%
Maximum Amperage 25/Circuit
Insulation Available in both standard ¼" and insulation Plus ½" construction
Sizes 2" dia. And up; 1-1/2" width and up (in ½" increments)
Terminals ¼-20 post terminals standard
Sheath Stainless steel
Lock-up Flange type standard
Maximum ID Consult factory
Standard width increments ½"
Standard gap when tightened ¼"
Thickness w/1/4" insulation 5/8"
Thickness w/1/2" insulation 7/8"
Options
Where flexible leads in armor or braid are specified, Omega recommends the use of post terminal in box with leads off box.
IP Add if you want the "Insulation Plus"
A Armored Cable (BX)
B Braided Wire
C Leads Wire, No Braid or Armor
D Lead exiting out of edge of heater, through porcelain insulator
E Terminal Connectors on studs - Ring lugs
F Partial Coverage
G Thermocouple hole in element area		 H Thermocouple hole in gap area, notched
I Inner Liner
J Twist Lock Plug on leads
K Wider than normal gap, specify
L Ground stud
M Dual Voltage - for bands 2-1/2" or more in width
N Four wire construction
O Overlapping shell on gap area
Note:
A) Latch and trunion has quick release spring loading, suggested for ceramic band with a 12" diameter or greater.
B) Terminal boxes and stud terminals are normally located 180 degrees opposite the gap.
WHEN ORDERING, PLEASE SPECIFY:
Quanity
Inside diameter & width
Voltage - on 2 piece bands we suggest each piece be rated at half the operating voltage, please specify total voltage
Wattage - on 2 piece bands please specify total wattage
Basic construction and options
Serial no. (If known or previously ordered)
Gap (if other than factory minimum)
Lead length (If other than std. 12")
Maintenance and trouble shooting for prolonging heater life
1. Regulate Voltage. A 10% variation in voltage results in a 20% variation in power.
2. When attaching the lead wire to the terminals, excessive turning pressure can cause breakage of the terminal resistance wire.
3. A ¼" gap should be maintained at the opening when operating. Retightening is not normally required, however, if the operating temperature is changed the clamp bolt should be checked.		 4. Any material which can be carbonized such as dirt, oil, plastic, etc., should not be allowed to collect on the heaters.
5. Select a heater to match the diameter of the cylinder. In no case should heaters be used that are too large.
6. Match the heaters as closely as possible to the actual load requirement to reduce cycling.
Diameter Width Total Volts Total Watts One or Two Piece Series Code Number
2-1/2
3
3
3
3-1/2
3-1/2
3-1/2		 1
3
6
1
1
3
4-1/2		 240
240
240/480
240
240
240
240		 375
700
2000
500
500
800
1000		 1
1
1
1
1
1
1		 105
100-IP
101-M
105
105
100-IP
101-HQ		 C-1009
C-3495
C-1767
C-1185
C-1186
C-3496
C-219
4
4
4-1/2
4-1/2
4-11/16		 2
4
4
4
3		 240
240
240
240
240		 800
960
1000
960
900		 1
1
1
1
1		 102-IP
100-IP
101-HQ
100-IP
101		 C-4018
C-3541
C-168
C-3478
C-3420
5
5
5
5
5		 3
3
3
3
3-1/2		 240
240
240
240
240		 850
850
1250
1250
1250		 1
1
1
1
1		 102-IP
100-IP
102-IP
102-IP
100-IP		 C-4019
C-3594
C-3595
C-4017
C-4019
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-3/4
5-3/4
5-3/4
5-3/4		 2
2
3
4
4
4-1/2
4-1/2
4-1/2
4-1/2
5
3
3
4
4		 240
240
240
240/480
240
240
240
240/480
240/480
240/480
480
480
480
480		 600
1000
700
1500
1500
2050
2700
1750
1500
2000
1200
1800
1200
1800		 1
1
1
1
1
1
1
1
1
1
1
1
1
1		 100-IP
100-IP
100-IP
101-MOH
101-HO
201-IP
101-IP
100-MOH
101-MOH
101-MOH
101-IP
101-IP
101-IP
101-IP		 C-3621
C-3622
C-3499
C-143
C-14
C-3403
C-3401
C-617
C-15
C-960
C-4054
C-3684
C-4052
C-4053
6
6
6
6
6
6
6
6
6
6
6		 2
2
2-1/2
3-1/2
3
4
4
5-1/2
5-1/2
6
6		 480
480
480
480
480
480
480
240/480
240/480
240
240/480		 1000
1500
1900
1800
1700
1700
2600
2000
2000
1500
2000		 1
1
1
1
1
1
1
1
1
1
1		 101-IP
100-IP
100-IP
101-IP
101-IP
101-IP
101-IP
101-M
101-MOH
101-HO
101-MOH		 C-3543
C-3512
C-3509
C-3533
C-4057
C-4055
C-4056
C-1984
C-378
C-1374
C-60
6-1/4
6-1/2
6-1/2
6-1/2		 3
2
5
6-1/2		 480
240
240
240		 2600
1000
2500
3500		 1
1
1
1		 101-IP
100-IP
101
101		 C-3685
C-3498
C-3410
C-1664
Diameter Width Total Volts Total Watts One or Two Piece Series Code Number
6-5/8
7
7
7
7
7-1/2
7-1/2
7
7-1/2
7-1/2
7-1/2
7-1/2		 3-1/2
5-1/2
2
3
4
2
3
3
4-1/2
5
5-1/2
8		 480
240
480
480
480
240
240
480
240/480
240
240/480
240		 1800
2000
1700
2500
2600
1000
1800
2600
200
2500
2500
4500		 1
1
1
1
1
1
1
1
1
1
1
1		 101-IP
101
100-IP
100-IP
101-IP
101
100-IP
101-IP
101-MOH
101
101-MOH
101		 C-3532
C-1665
C-3511
C-3510
C-4058
C-1133
C-3494
C-3686
C-239
C-1539
C-2230
C-494
8
8
8-3/8
8-1/2
8-1/2		 2
3
6
2-1/2
3		 240
480
480
480
480		 1000
3000
2400
3000
3200		 1
1
1
1
1		 100-IP
100
100
100
100		 C-3500
C-3589
C-3542
C-3588
C-3547
9
9
9
9
9
9-1/8		 2
2-1/2
5
5-1/2
5-1/2
4		 240
240
240/480
240
240/480
240		 1750
2000
2500
2500
3000
3000		 1
1
1
1
1
1		 101
101
101-MOH
101
101-MOH
101		 C-3411
C-2084
C-743
C-2935
C-780
C-498
10
10
10
10-7/16
10-7/16
11
11
12
12
12-1/2
12-3/4		 2-3/16
5-1/2
1-1/2
2
1-1/2
5
5
6
6
7
6		 240
240
240
240
240
240/480
240/480
240/480
240/480
240
240		 1750
2500
1250
1750
1750
4000
4000
4000
5000
5700
5000		 1
1
1
1
1
1
1
1
1
1
1		 101
101
101
101
101
101-M
101-MOH
101-MOH
101-MOH
101
101		 C-2085
C-1538
C-3427
C-497
C-3421
C-1035
C-237
C-796
C-3477
C-3408
C-3409
13
13-9/16
13-9/16
15
16
16
20
20
22
25-1/2
25-1/2
 4
3
2-1/2
6
2
4
3
4
4
3
4		 480
240
240
240/480
480
480
480
480
480
480
480		 5000
3750
3250
8000
3750
5000
5600
7500
6600
7300
9800		 2
1
1
1
2
2
2
2
2
2
2		 301
101
101
101-MOH
301
301
301
301
301
301
301		 C-1248
C-3422
C-3423
C-1974
C-3551
C-946
C-941
C-944
C-2760
C-942
C-942
